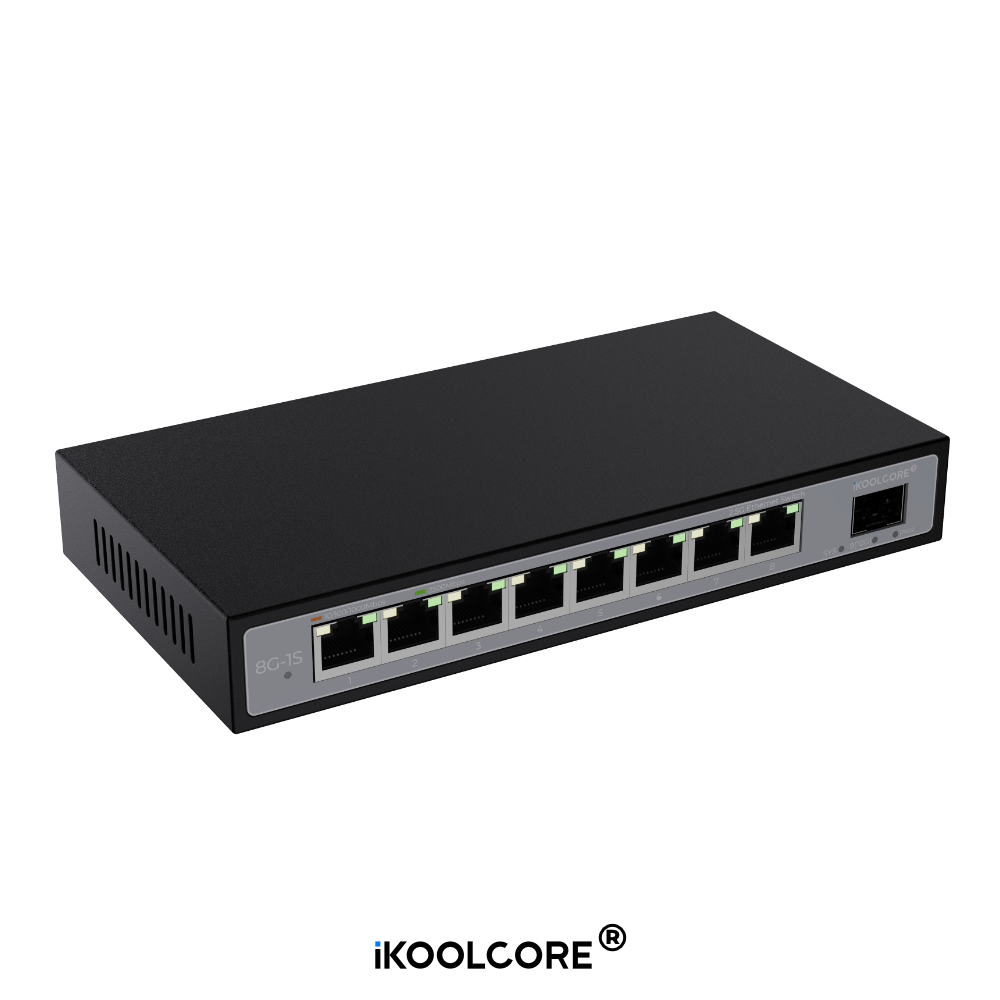

2.5G Bandwidth unmanaged Switch

The switches are based on Realtek's 8373 chip solution. The first one is an unmanaged switch, while the second one is a managed switch with a web interface that supports advanced functionalities such as VLAN management and link aggregation.

• Supported Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3bz
• IEEE 802.3z
• IEEE 802.3ae
• IEEE 802.3x
• Network Media:

• 10Base-T: Cat3, Cat4, Cat5 or higher UTP/STP (up to 100m)
• 100Base-T: Cat5 or higher UTP/STP (up to 100m)
• 1000Base-T: Cat5 or higher UTP/STP (up to 100m)
• Multi-mode Fiber: 50/125, 62.5/125, 100/140um
• Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
• Transmission Mode: Store and Forward
• MAC Address Table: 4k
• Switching Capacity (Backplane Bandwidth): 60Gbps
• Jumbo Frame: 12Kbytes
• Packet Forwarding Rate: 44.64Mpps
• Power Input: DC 12.0V 2A, Plug Type may vary depending on the customer's location.
